Head Section is designed with a Pillow block bearings and UHMW seals. Available options are include; split sprockets, plug switches, chain slack detectors, take-up at the head section.
Conveyor Trough is available in two configurations one-piece, or three piece. Each can be lined with AR in various thicknesses either only on the bottom or on the bottom and up the sides. This liner is available in AR of Stainless Steel ¾ or fully lined to the top flange. We offer the option of either return rollers or return rails.

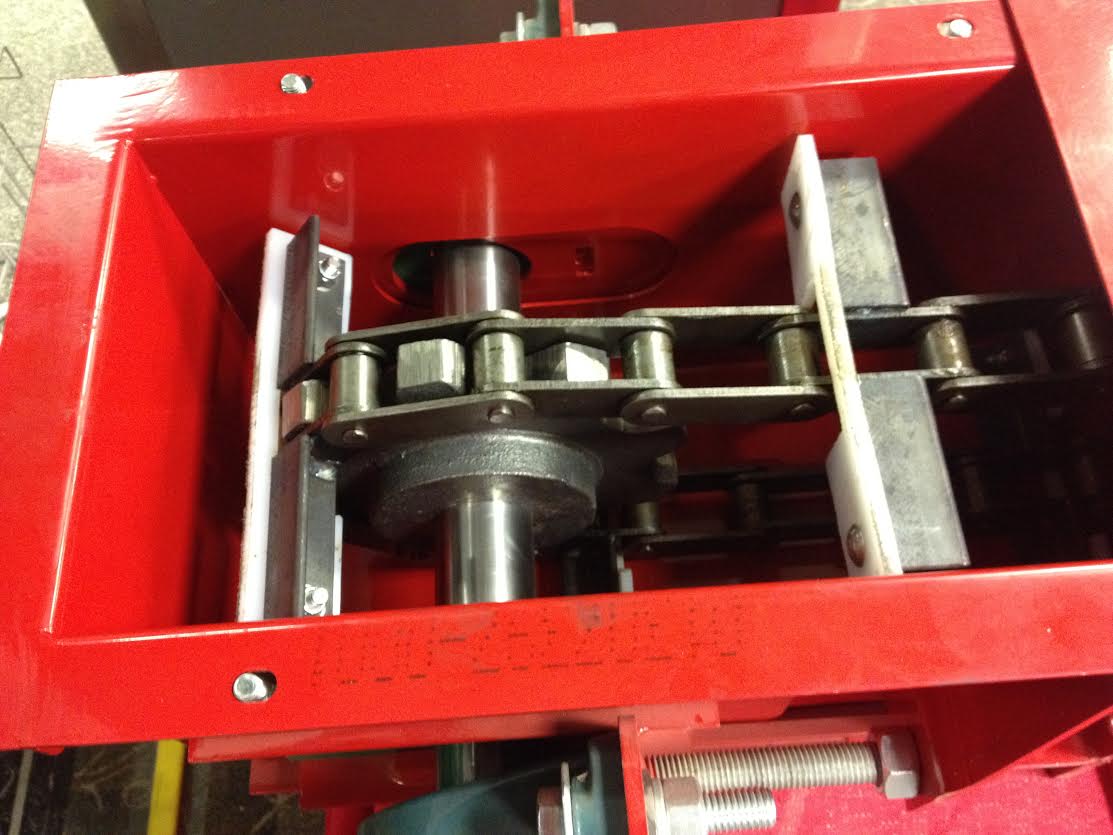

Tail Section is designed with a Pillow block bearings and UHMW seals. Available options include but not limited to; split sprockets, chain slack detectors, Self-Cleaning Curved Tails or take-up at the tail section.
Flatbottom En-Masse Conveyor can accommodate 5 degrees of incline. Various capacities can be determined by box size and co-efficient of friction based on chain pull. Series has capacity range of 200 BPH or 5.09 metric tons per hour to 60,000 BPH or 1,527 metric tons per hour. Finish can be Powder Coated, blue or your color choice, Hot Dipped Galvanized or 304 Stainless Steel.
We at Hunter Worldwide are the originator of en-masse conveying and have engineering knowledge to fit the correct conveyor for your future projects.
Low profile En-Masse conveyor is a low and wide conveyor designed to be put in locations where a standard narrow and tall conveyor cannot fit. Comes standard with return cups and return rails.
Designed with Split Box to allow the grain to flow on bottom section. Series includes horizontal & incline system for hard to reach installations for special application. The Series will eliminate deep boot pit and can handle 45 degree rise. Heavy duty 1/2” UHMW paddles with optional Bypass Inlet Hopper with heavy duty grating. This system will allow the elevator boot to be on grade level. Capacity range from 200 BPH or 5.09 metric ton per hour to 18,000 BPH or 458.2 metric ton per hour. Finish is Powder Coated, blue or color of your choice, Hot Dipped Galvanized or 304 Stainless Steel.
The conveyor is designed for self cleaning, excellent for soft materials such as feed, etc. This conveyor can be inclined to 30 degrees and has the capacity based on trough size from 200 BPH or 5.09 metric ton per hour to 18,000 BPH or 458.2 metric ton per hour. The comes complete with UHMW flight paddles, heavy duty chain, with one standard bypass inlet. Finish is Powder Coated, blue or color or your choice, Hot Dipped Galvanized or 304 Stainless Steel.
